Solderless Breadboard with Power and I/O Breakout Board
- Cat No:
- PB8819
$37.90
Description
This kit comprises of a solderless breadboard with 830 connection tie-points, a power supply module and 64 pieces of mixed DuPont style jumper cables. Solderless breadboards are great for building and testing new circuits. Ideal for circuit board prototyping and Arduino® or Raspberry Pi® projects. The power module can be plugged into the power rails and can be powered from either a 12V plug pack or from 5V using the USB socket and has a switchable output between 3V and 5V DC. For best results use solid wires when breadboarding; you’ll find pre-made cable kits and premium versions especially convenient.
Contents:
• Solderless breadboard with 830 Points
• Breakout board module for Power and USB connection

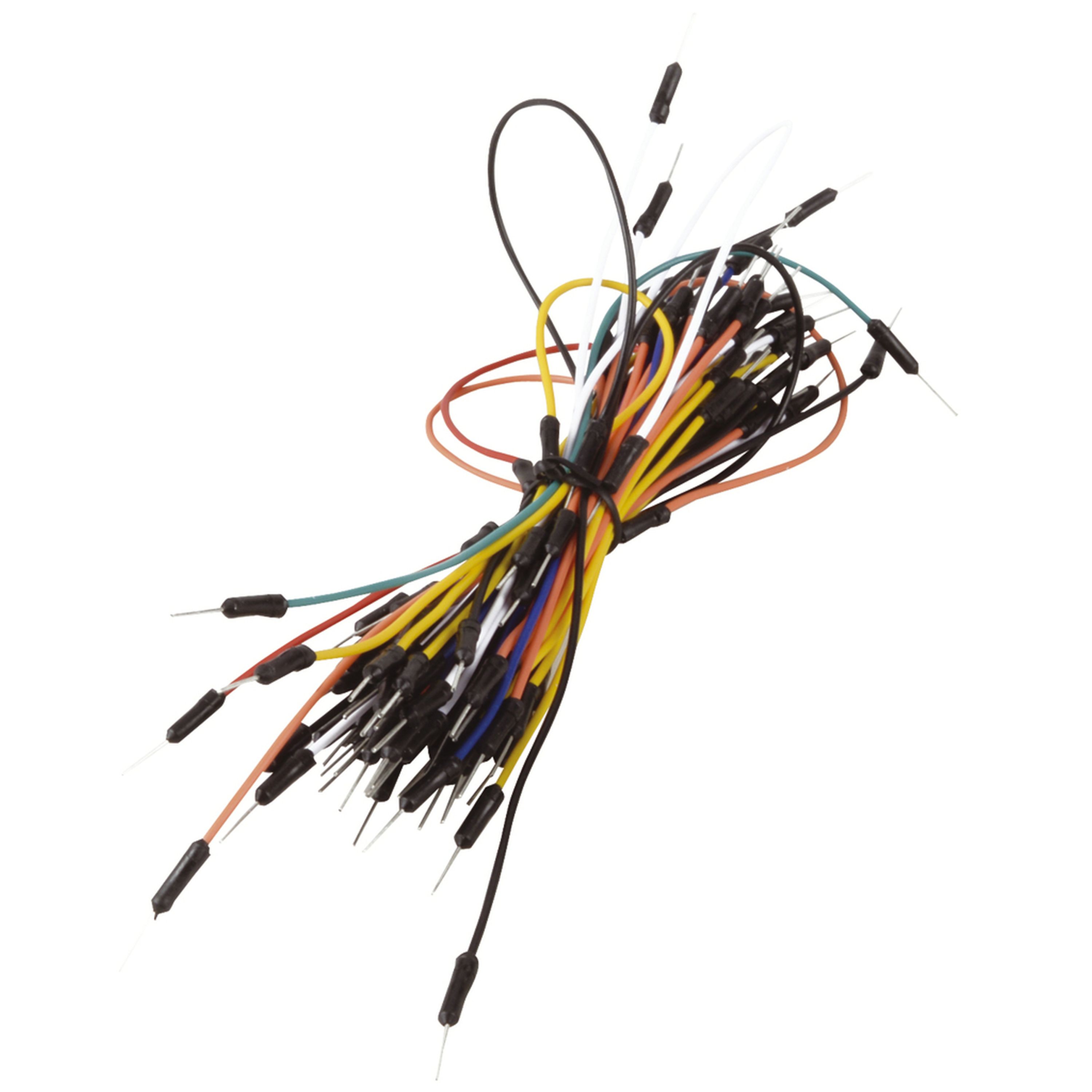

• 64 mixed jumper wires of different lengths and colours
Specifications
- Board type
- Prototype
- PCB hole spacing
- 2.54mm
- Breadboard rails
- true
- Arduino Compatible
- true
- Includes nubbins for linking breadboards
- true
- Length
- 165.0mm
- Width
- 54.0mm
- Height
- 9.0mm
- Dimension for
- Add-on Module
- Dimensions details
- Power/USB Connection Board
- Length
- 32.0mm
- Width
- 53.0mm
- Height
- 16.0mm
- Packaged Dimensions
- 23.8cm(Length) x 5.8cm(Width) x 3.8cm(Height)
