POWERTECH

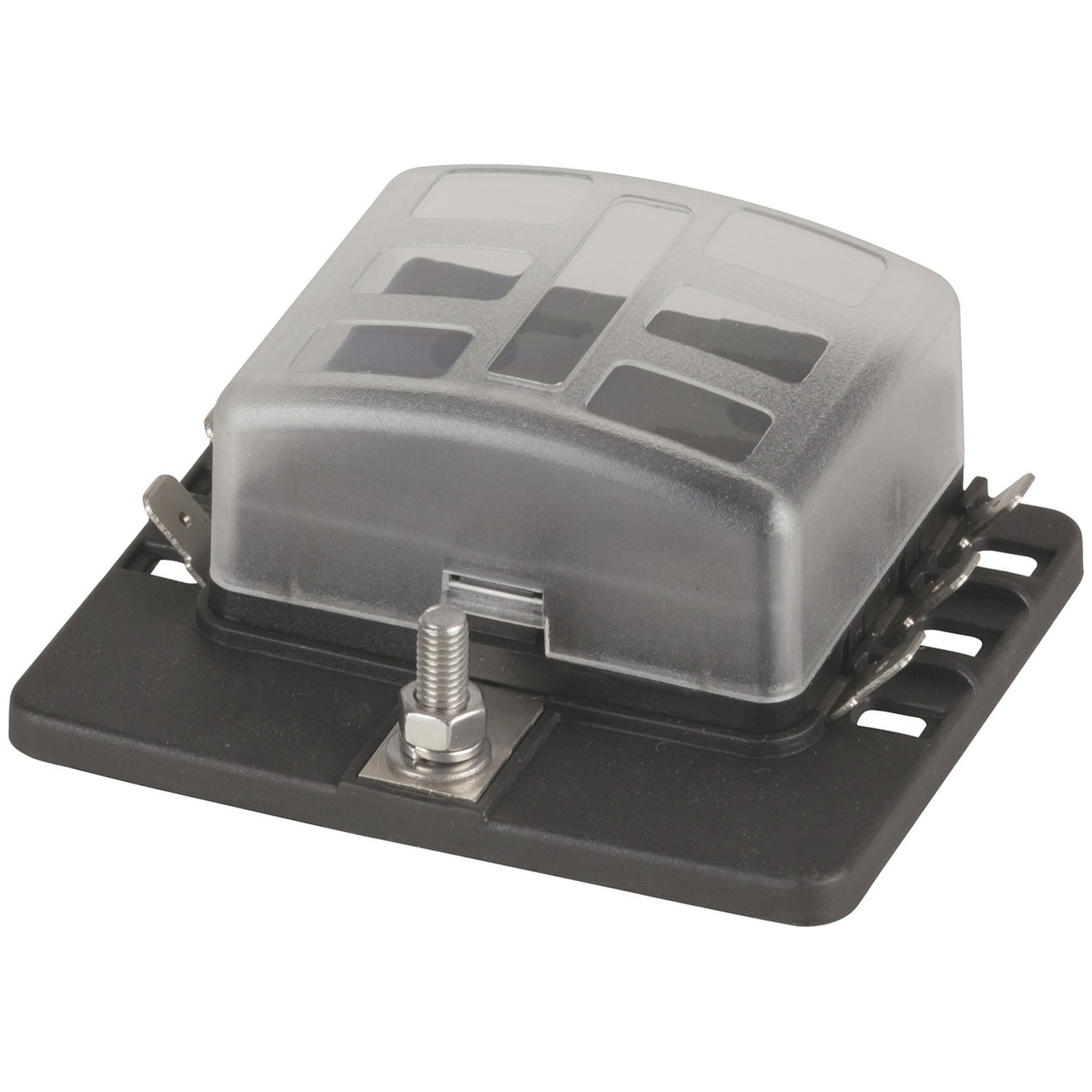

Powertech 6 Way Standard Blade Fuse Block with Spade Terminals
- Cat No:
- SZ2096
In Stock
$26.90
Description
A convenient 6 way fuse block with integrated blown fuse indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Features a binding post for input and spade terminals for output. Suitable for use in 12-24V systems with up to 30A fuse per channel. Comes with a protective cover and includes a sheet of adhesive labels for easy identification.
Features:
- Input rating: 32VDC at 100A total maximum
- Input wire size: 4-6 AWG
- Output rating: 30A maximum per circuit
- Output wire size: 12-16 AWG
- Fuse type: Standard ATO blade
Specifications
- Width
- 90.0mm
- Height
- 40.0mm
- Depth
- 70.0mm
- Weight
- 68.0g
- Packaged Dimensions
- 15.2cm(Length) x 12.2cm(Width) x 4.2cm(Height)
