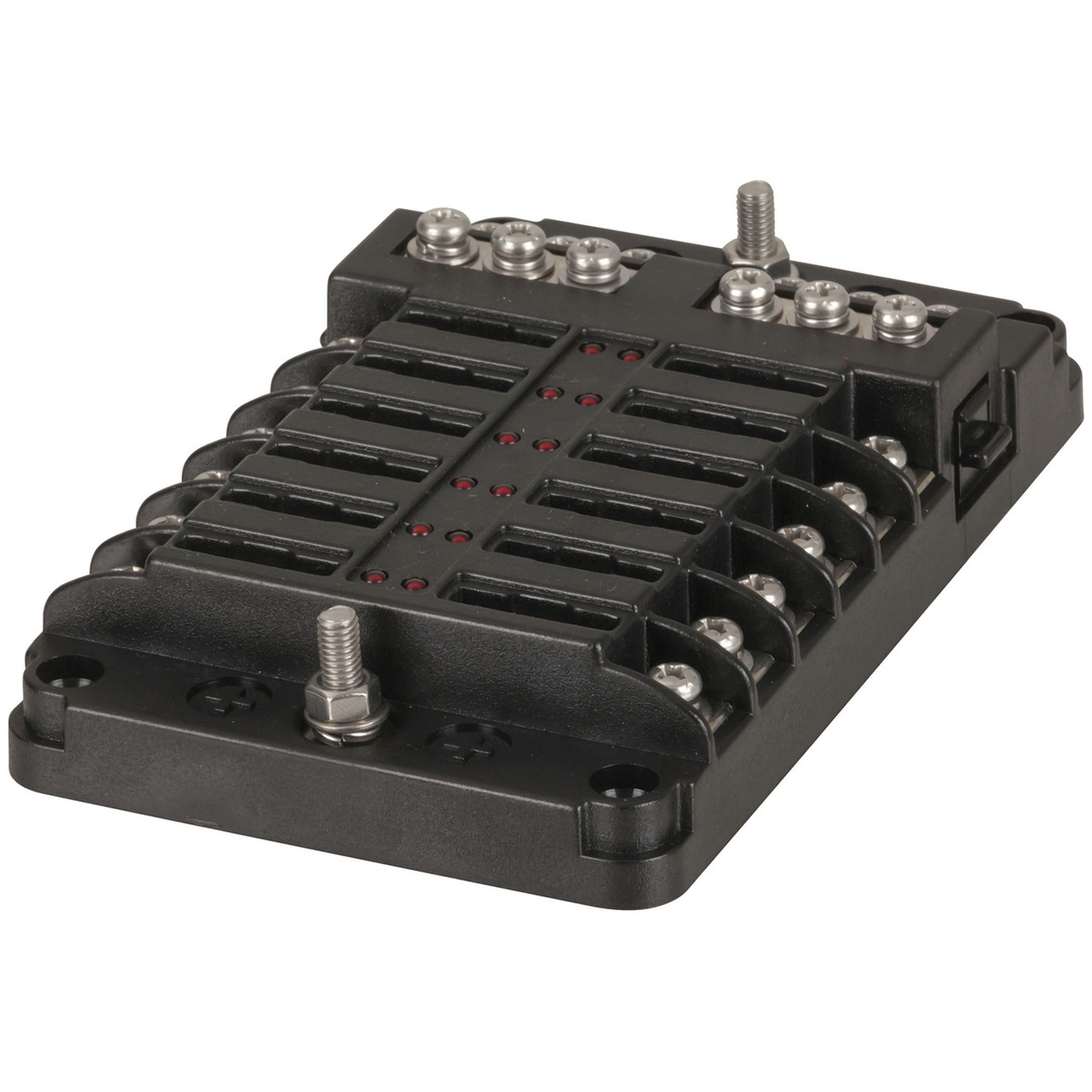

Powertech 12 Way Standard Blade Fuse Block with Bus Bar
- Cat No:
- SZ2032
In Stock
$49.90
Description
This unit is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30 amps, up to 100 amps combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.
Features:
Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar
Specifications:
- Main Input Line:
Terminal Rating: M5 Threaded Studs (32VDC, 100A maximum)
Wire Size: 4-6 AWG - Single Output Line:
Terminal Rating: M4 Threaded Studs (32VDC, 30A maximum)
Wire Size: 12-16 AWG - Terminals: Nickel Plated Copper
- Screws: Stainless Steel
Specifications
- Width
- 85.0mm
- Height
- 138.0mm
- Depth
- 37.0mm
- Weight
- 250.0g
- Packaged Dimensions
- 21.0cm(Length) x 12.2cm(Width) x 4.5cm(Height)
