DPDT Switch Centre Off Spring Return Both Sides
- Cat No:
- SK0980
In Stock
$9.50
Description
Momentary contacts with spring returns to centre on both sides. These are commonly used for car power antennas and power windows.
Specifications

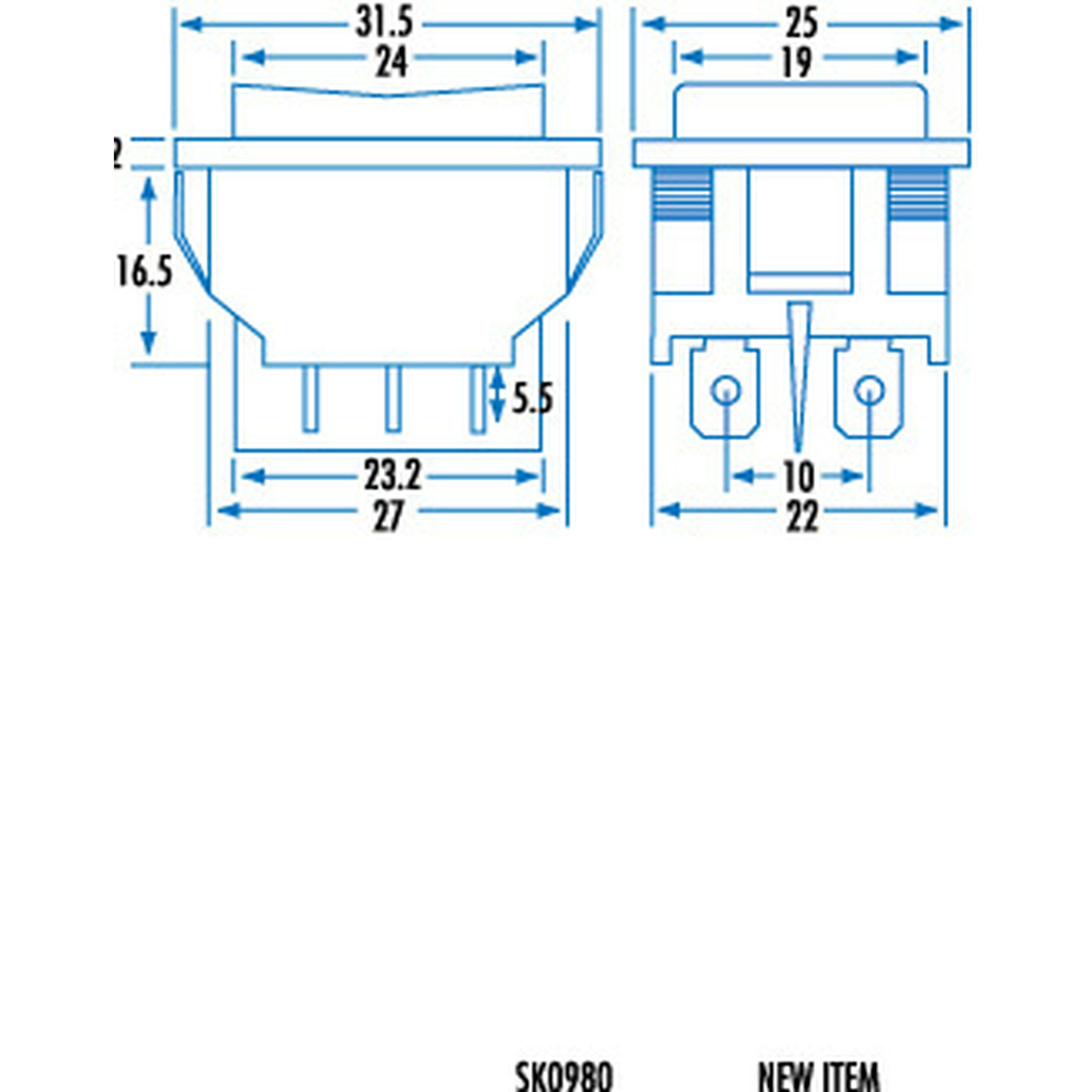

- Length
- 31.5mm
- Width
- 25.0mm
- Height
- 16.5mm
- Switch Type
- Rocker
- Pole Throw Type
- DPDT
- Switch Function
- Double Action Momentary
- Centre Off
- true
- Switch Connection
- Spade Terminals
- Switch Colour Coded
- Black
- Mechanism Material
- Plastic
- AC Voltage rating
- 240.0V
- AC current rating
- 10.0A
- Packaged Dimensions
- 13.1cm(Length) x 7.4cm(Width) x 2.9cm(Height)
