12 Key Numeric Keypad
- Cat No:
- SP0770
In Stock
$14.90
Description

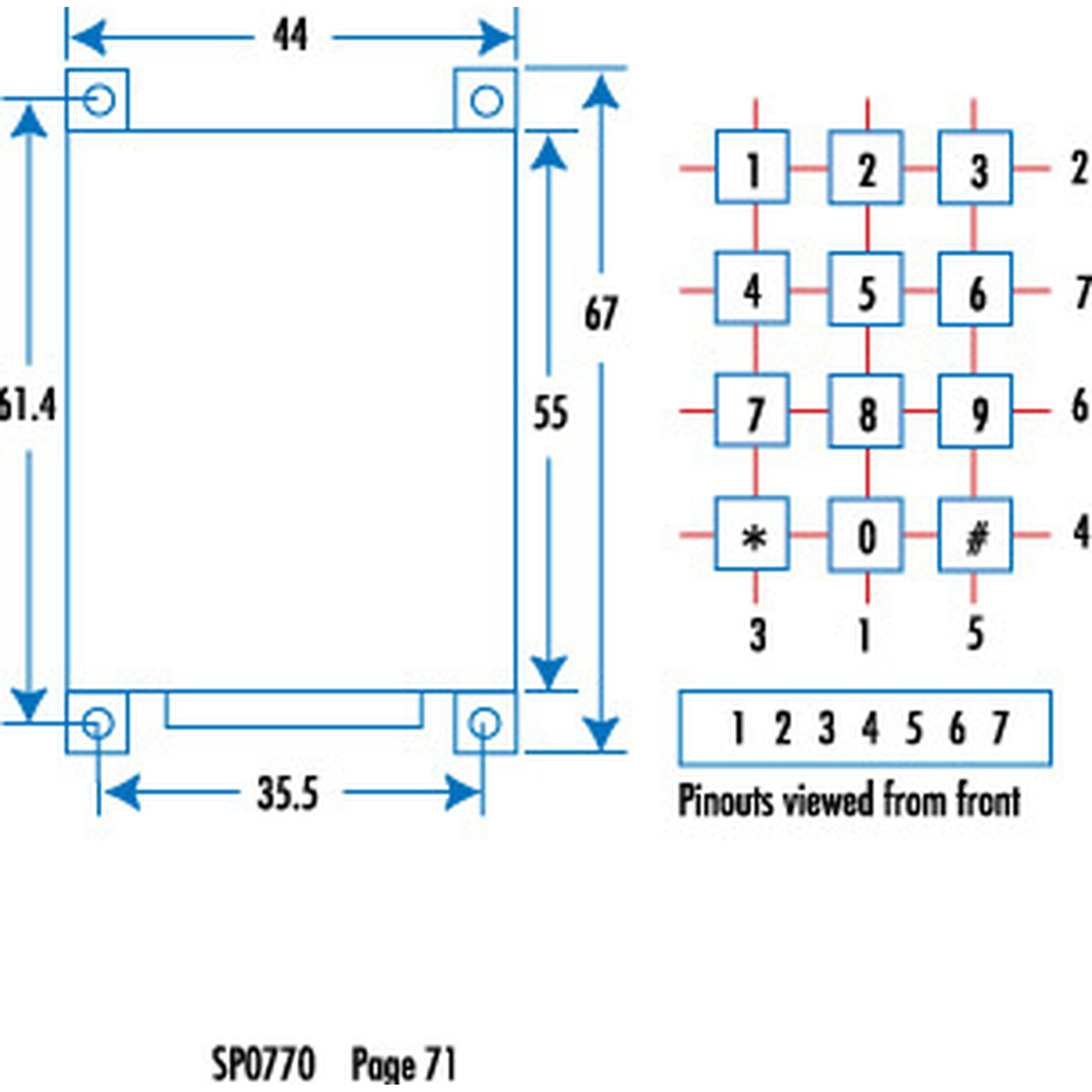

This telephone style keypad has many uses. From hobbyists to security situations. It has 0-9, asterix, # - 3 x 4 way matrix. Made with onductive rubber material, coloured white keys on black background.
Specifications
- Switch Type
- Keypad
- Poles / Contacts
- Matrix
- Throws / Positions
- 12 pos
- DC Voltage
- 24.0 V
- DC Current Rating
- 20.0 mA
- Linear Travel Direction
- Vertical
- Linear Travel Distance
- 1.5 mm
- Switch Colour Coded
- White/Black
- Actuator Length
- 54.0 mm
- Actuator Width
- 44.0 mm
- Width
- 44mm
- Height
- 54mm
- Depth
- 5mm
- Packaged Dimensions
- 8 x 6.5 x 0.8 cm
- Switch Type
- Keypad
- Cycle Life
- 1000000 cycles
- Contact Resistance
- 200Ω
- DC Voltage
- 24V
- DC current rating
- 20mA
